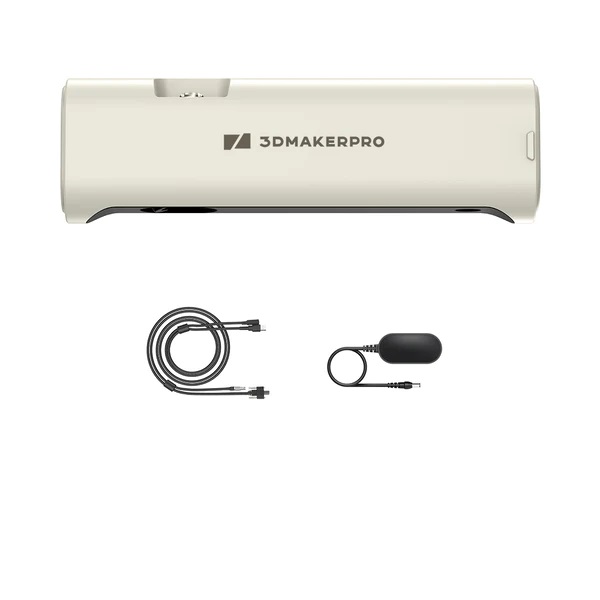

3DMakerPro Lynx Standard + Turntable 3D Scanner (Open-box)
$500.00
The 3DMakerPro Lynx 3D Scanner delivers high-precision scanning with 0.10mm accuracy and a 250×400mm capture range, perfect for objects 100-2000mm in size. Its NIR light source ensures detailed scans, while the included turntable enhances stability for precise captures. With JMStudio software, mobile support, and optional accessories like Connect for mobile scanning and Color Kit for texture mapping, Lynx is a versatile tool for creators in art, design, and industry.
Choose Quantity
Product Details
Scan Performance:
- Accuracy: 0.10mm
- Resolution: 0.30mm
- Frame Rate: 10fps
- Tracking Mode: Visual tracking
- Working Distance: 400-900mm
- Single Capture Range: 250×400mm
- Typical Object Sizes: 100-2000mm (expandable to 5000mm)
Hardware Specifications:
- Light Source: NIR (Near-Infrared)
- Color Texture: Extended support (with optional Color Kit)
- USB Interface: USB 2.0
- Dimensions: 244×75×48mm
- Weight: 800g

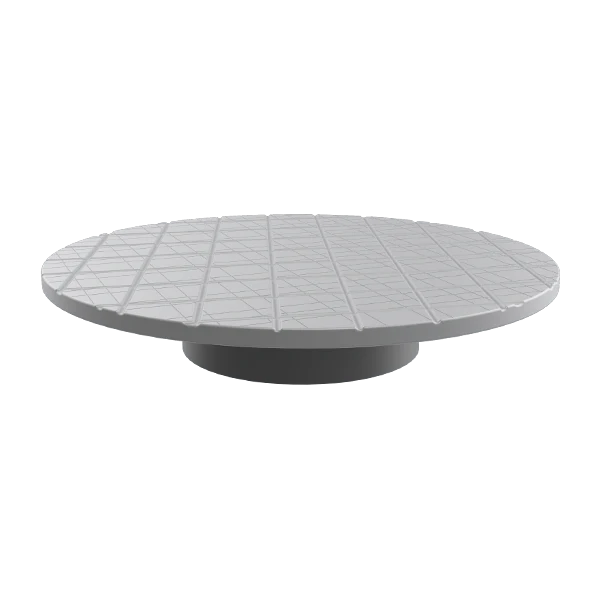

- Includes: Turntable for stable scanning
Software & Compatibility:
- Output Formats: OBJ, STL, ASC
- Compatible OS: Windows 10/11 (64-bit), macOS 12/13
- Mobile Support: Android 10.0+ / iOS 15.0+ (Extended support)
System Requirements:
- Minimum: Intel Core i5 (8th Gen), 16GB RAM, NVIDIA MX250 (2GB VRAM)
- Recommended: Intel Core i7 (8th Gen), 16GB RAM, NVIDIA GTX 1060 (4GB VRAM)
