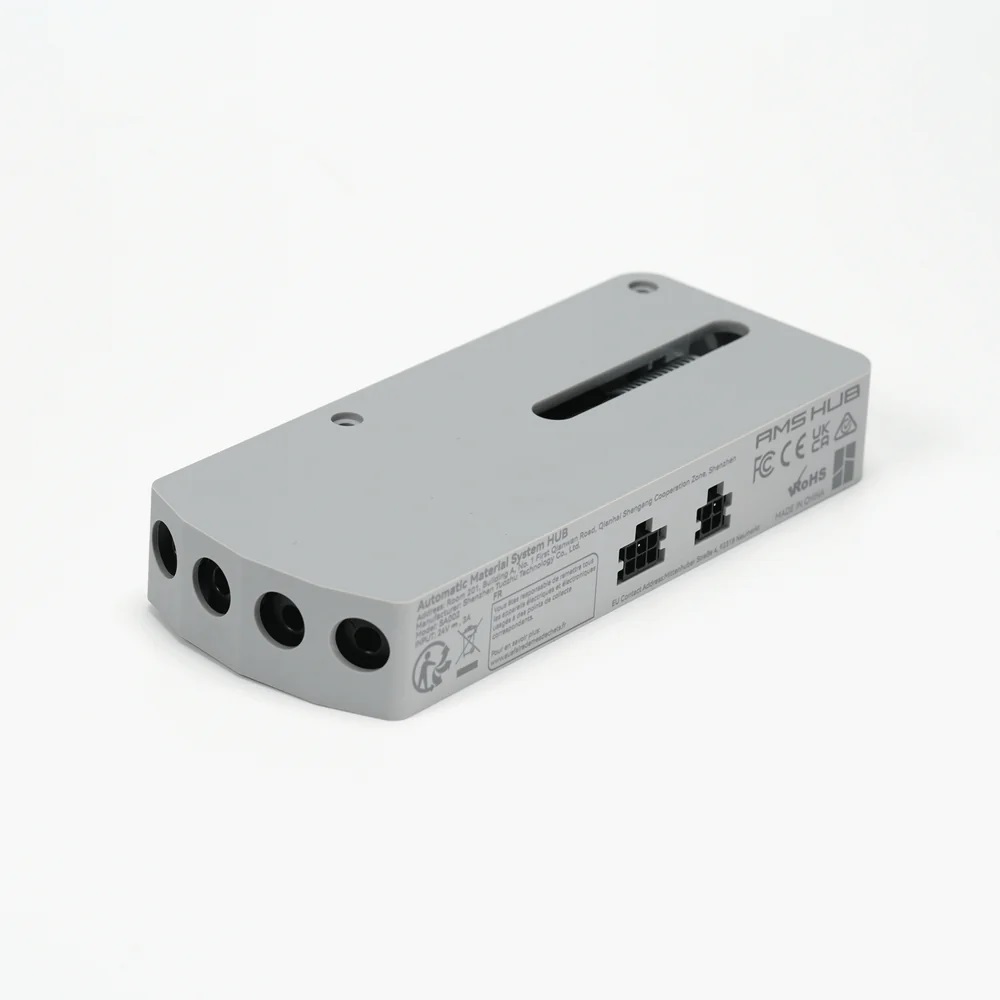

Bambu Lab AMS Hub
$69.00
The AMS Hub is used to expand the number of AMS connected to Bambu X1/P1 series printers from 1 AMS unit(4 channels) to a maximum of 4 AMS units(16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal.
Choose Quantity
Product Details
- Expand AMS connections for improved efficiency
- Enhance refueling speed and signal redundancy
- Easy installation with clear instructions
- Compatible with Bambu X1/P1 series printers
Installation
- Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series.
- Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance.
- According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.
What's in the box:
- AMS Hub
- Bus Cable - (2x) 6pin (1.5m)
- PTFE Tube
- M3*28 Screw (x2)
AMS Hub Tech Specs:
- Product Size: 140x60x22 mm
- Package Size: 235x167x40 mm
- Product Weight: 84 g
- Gross Weight: 321 g
- Material: Plastic, metal, printed circuit board
- Input: 24V 3A
- Color: Gray
