Bambu Lab AMS Lite

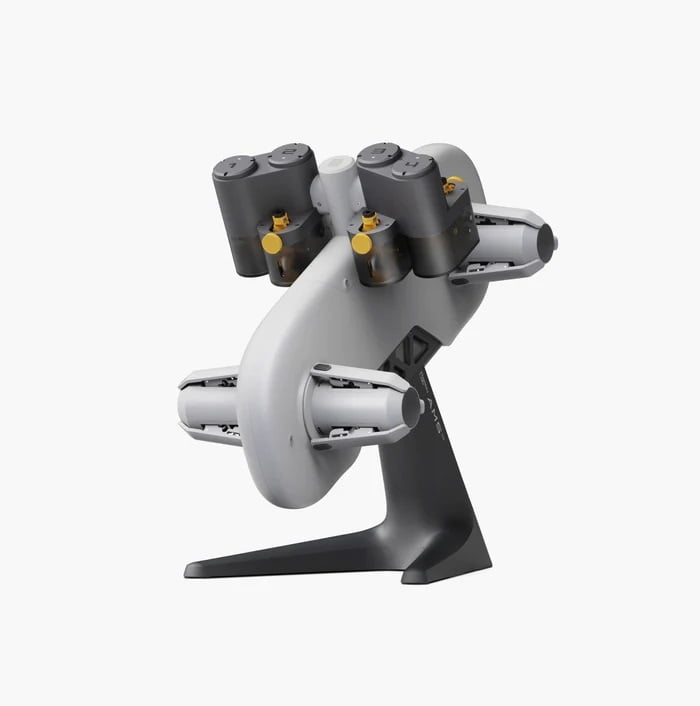

AMS, short for Automated Material System, collaborates with 3D printers to accomplish automated multi-color printing. AMS lite is one variant of the Automated Material Systems developed by Bambu Lab. This article aims to outline the modules, primary functions, and workflow of AMS lite.
What's in the box
AMS lite Body
AMS lite Stand
AMS lite Rotary Spool Holder (x4)
Allen Key H2
PTFE Tubes for AMS lite
Screw (×5) (For AMS Stand)
| Item | AMS lite Specification |
| Product Size | 397*208*342 mm³ |
| Package Size | 470*290*340 mm³ |
| Product Weight | 1.6 kg |
| Gross Weight | 3.7 kg |
| Material | ABS / PC / POM |
| Supported Filament*¹ | PLA, PETG, ABS, ASA, PET, PA, PC, PVA (dry), BVOH (dry), PP, POM, HIPS and Bambu PLA-CF / PAHT-CF |
| Not Recommended Filament*² | Bambu PLA Glow, Bambu PETG-CF, and other generic brands of PLA Glow-in-the-dark, etc. |
| Unsupported Filament*³ | TPE, TPU, PVA (wet), BVOH (wet), Bambu PET-CF / PA6-CF / TPU 95A and other brand filament that contains carbon fiber or glass fiber |
| Filament Diameter | 1.75 mm |

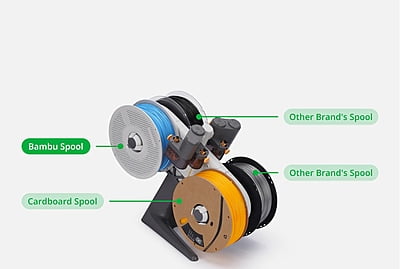

| Supported Spool Size | width: 40 - 68 mm, inner diameter: 53 - 58 mm |
*¹: Determined by the Loading / Unloading perspective. Before printing, the compabitility between the filament and the printer needs to be considered.
*²: These filaments can generate loading errors and / or will cause faster wear to the AMS lite components.
*³: Filaments that are too soft, too brittle or too abrasive are not compatible with the AMS lite.
For more detailed information please refer to Filament Guide. Learn more about how AMS lite works.
