Phrozen Sonic 4K Dental Ecosystem


Digital Dentistry

Specially manufactured for dental professionals, Phrozen’s Sonic 4K 3D printers provide solutions for all industries in digital dentistry.
Whether you are looking to produce dental models with removable dies, ortho models, in-office nightguards, crowns, surgical guides, IBT, wax models, or any other dental application, we've developed an easy-to-use and affordable ecosystem in collaboration with Phrozen to output amazingly accurate models with great surface finish.
The Phrozen Sonic 4K series is equipped with a new type of monochrome LCD, tailor-made for fast and accurate 3D printing. This newly developed LCD has a long lifetime and is much stronger and more pressure-resistant than regular LCDs, allowing for very fast layer times up to 2 sec cure time per layer for 50 microns.
The new ParaLED 3.0 module is specifically designed for mono-LCD featuring higher efficiency and better thermal dissipation.
The Phrozen Sonic 4K series is compatible with all LCD, DLP, and even SLA UV resins, making endless industry applications possible with this printer.

Our ecosystem includes the following:
  • Detailed one-to-one training
  • Delivery & installation
  • 1-year warranty on all components
  • Lifetime aftersales support by experts in the field
  • On-site & very fast maintenance by professional engineers

  • Printing Dimensions: 134 x 75 x 200 mm
  • LCD: Monochrome 6.1"
  • LCD Resolution: 4K
  • Z Resolution: 10, 25, 50, 100 µm
  • XY Resolution: 35 µm
  • LED Array: 405nm ParaLed 3.0
  • Slicer: Chitubox or Phrozen Dental Synergy
  • Z-axis: Dual Linear Rail with Ball Screw
  • Print Speed: 90 mm/hour
  • Printer size: 25 x 25 x 33 cm
  • Printer weight: 14.9 Kg
  • Ports: RJ45, USB, microSD
  • Printer OS: Phrozen OS
  • Power Input: 100-240 VAC – 50/60 HZ
  • Printing Dimensions: 200 x 125 x 200 mm
  • LCD: Monochrome 9.1"
  • LCD Resolution: 4K
  • Z Resolution: 10, 25, 50, 100 µm
  • XY Resolution: 52 µm
  • LED Array: 405nm ParaLed 3.0
  • Slicer: Chitubox or Phrozen Dental Synergy
  • Z-axis: Dual Linear Rail with Ball Screw
  • Print Speed: 60 mm/hour
  • Printer size: 33 x 29 x 47 cm
  • Printer weight: 17.2 Kg
  • Ports: RJ45, USB, microSD
  • Printer OS: Phrozen OS
  • Power Input: 100-240 VAC – 50/60 HZ

Applications

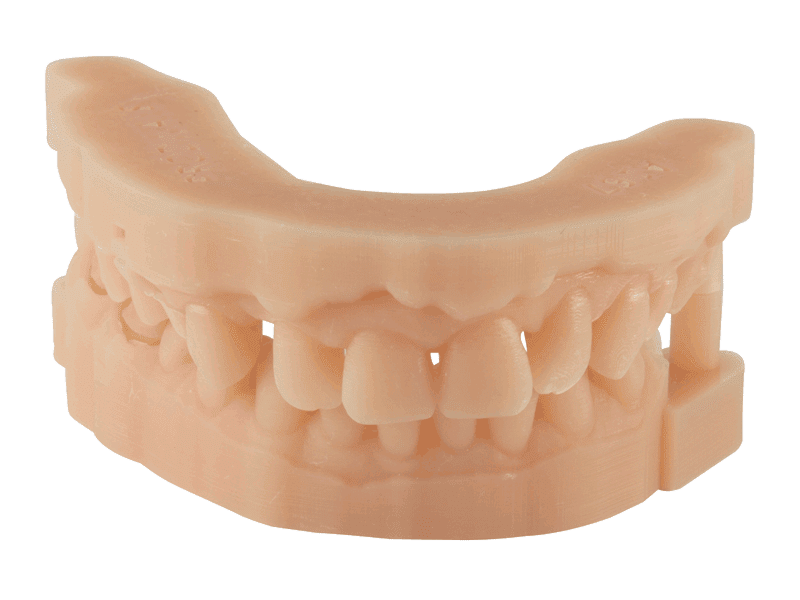

Ortho Models

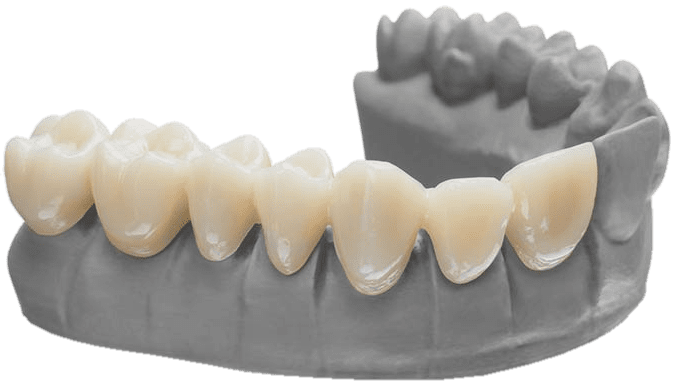

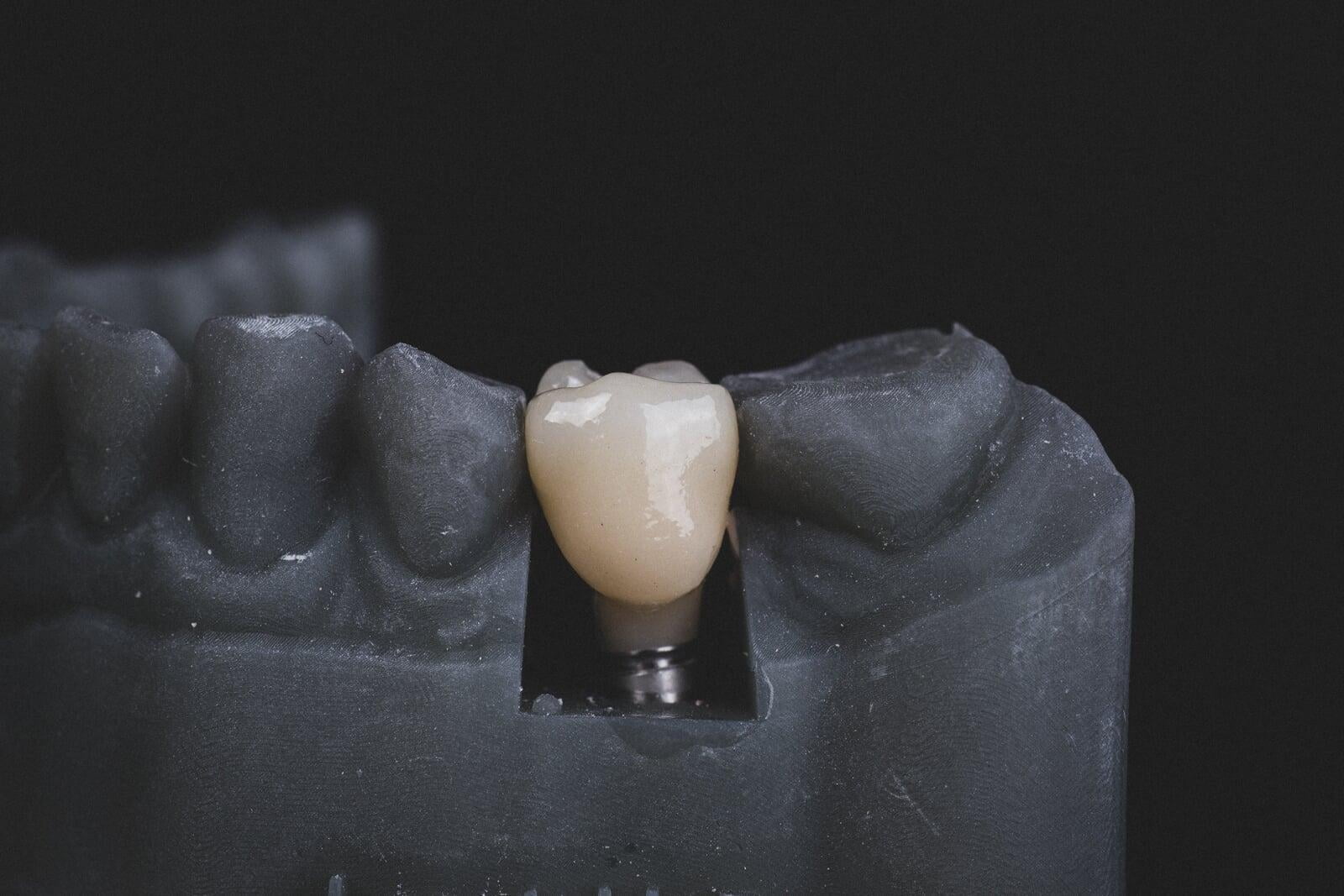

Temporary & Permanent Crowns

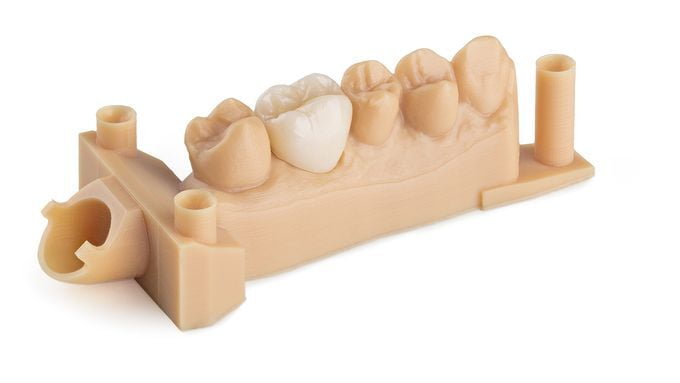

Model & Die

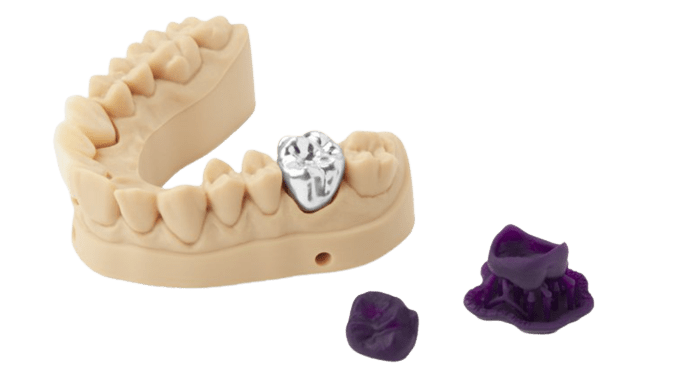

Wax Models

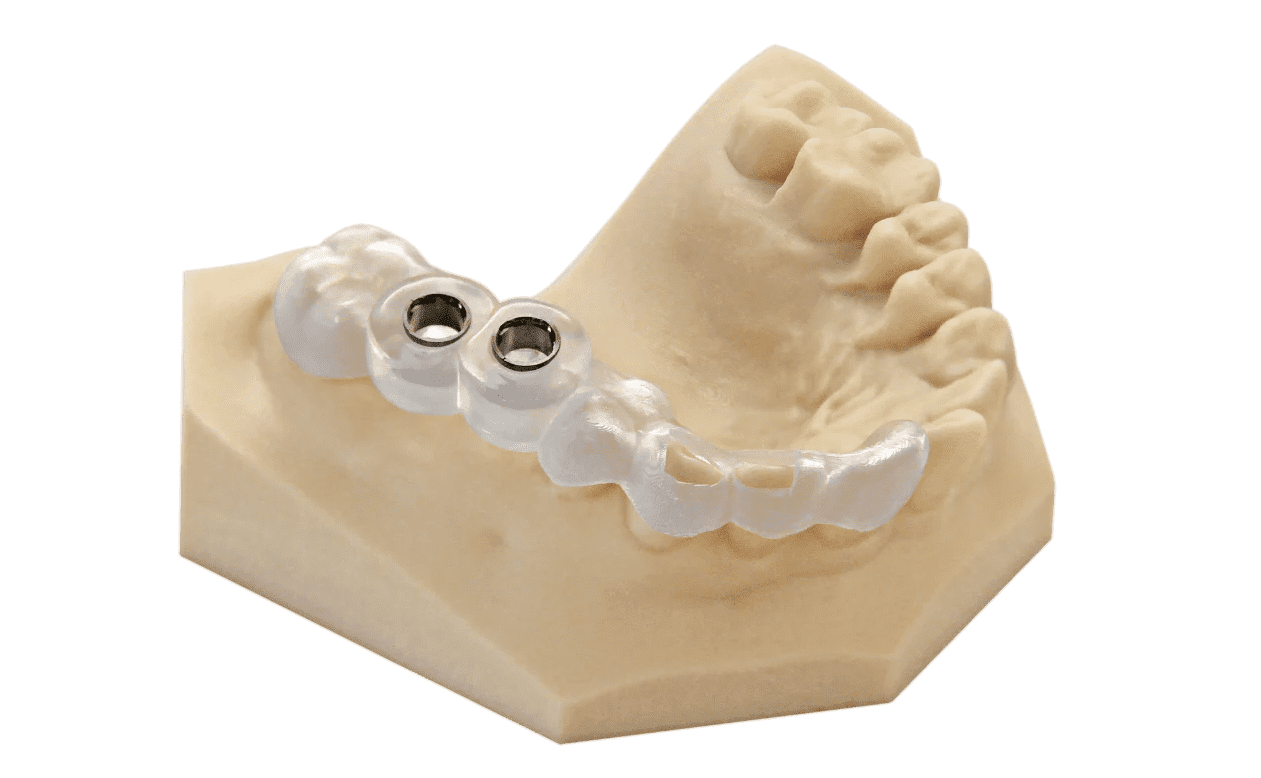

Surgical Guides

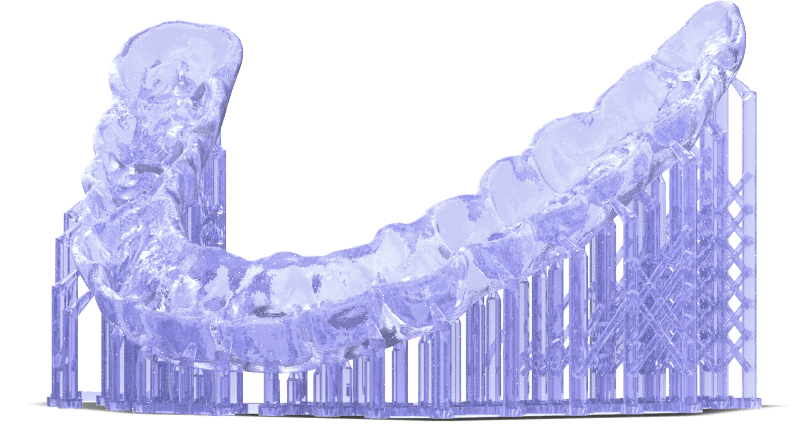

Nightguards & Splints

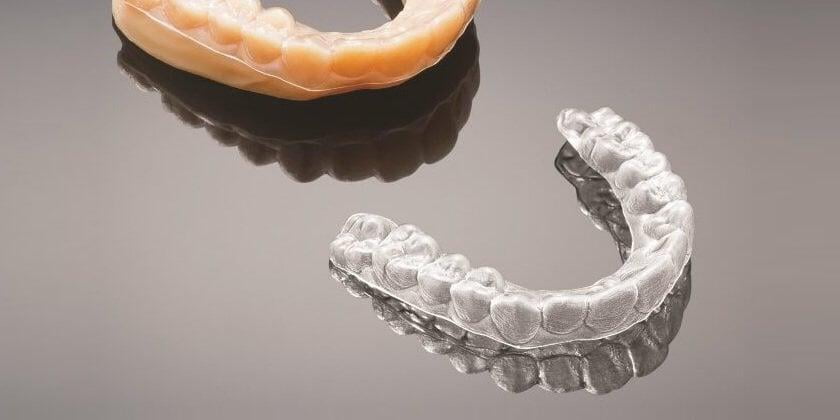

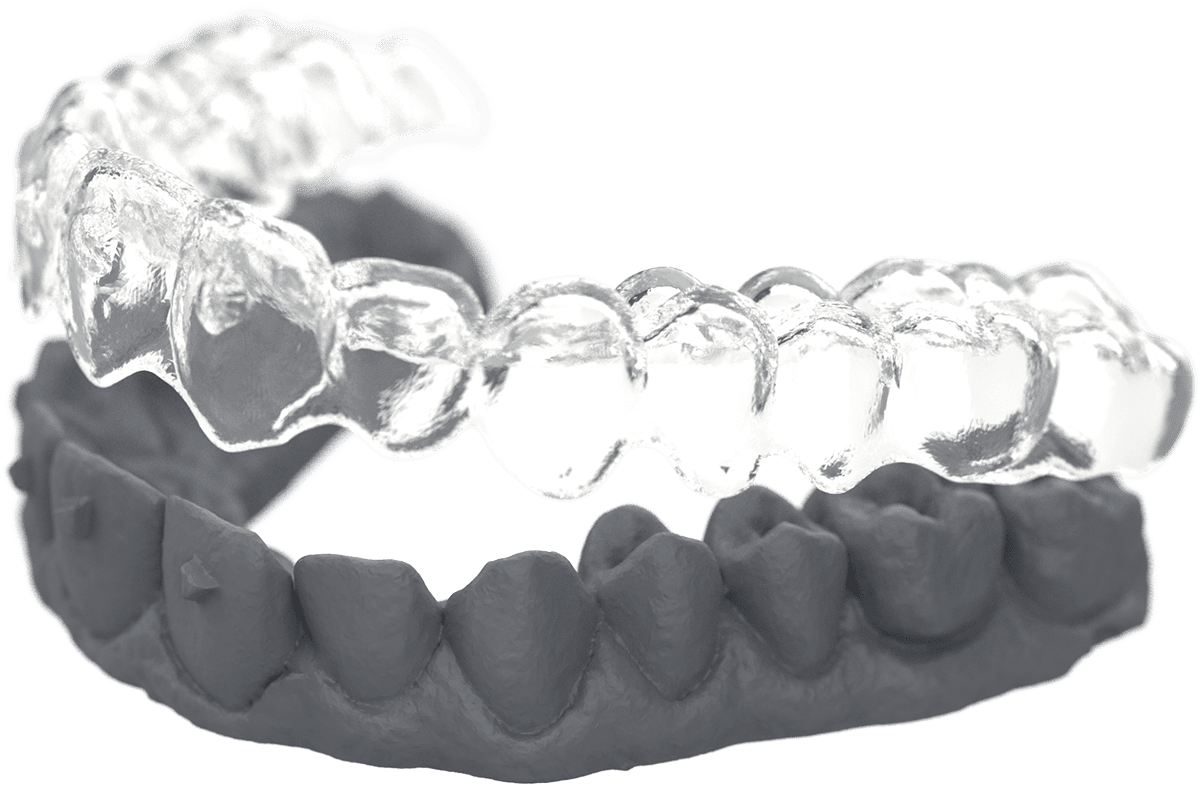

Aligners

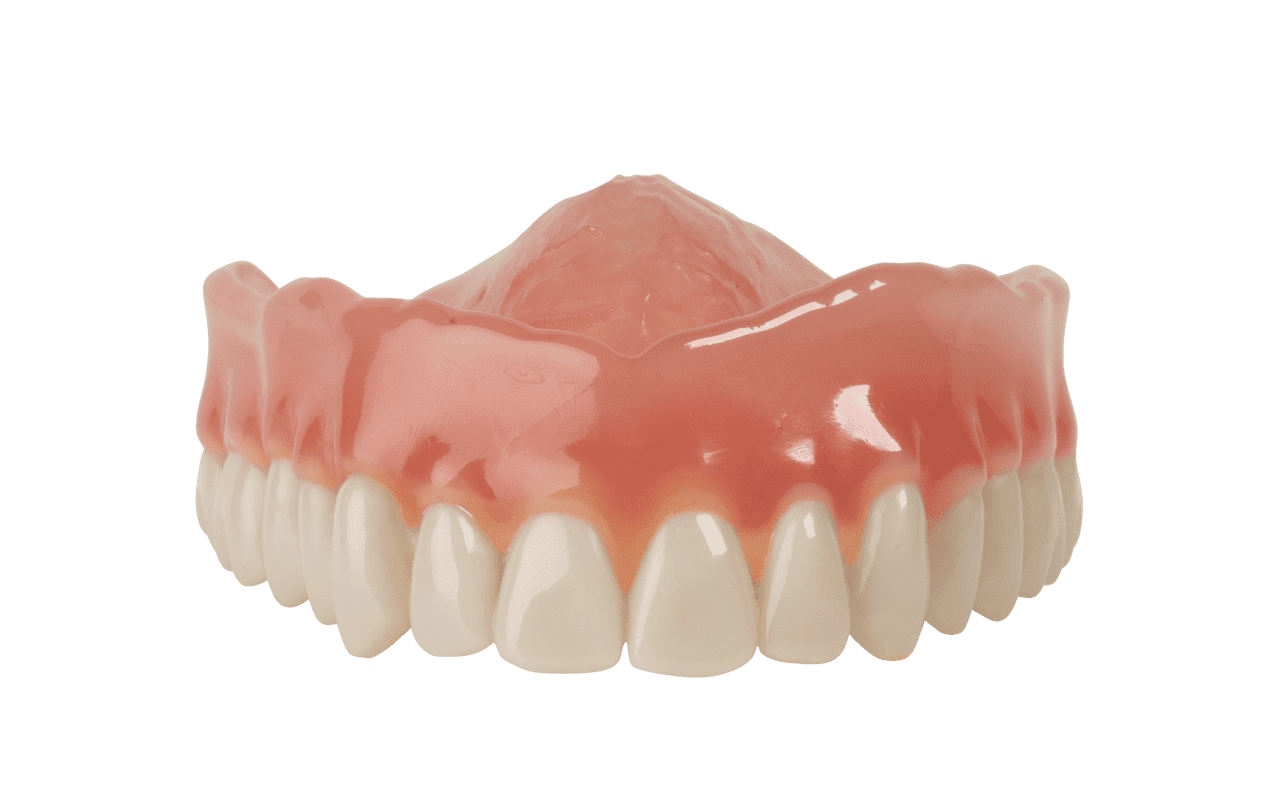

Dentures
